NIDEC KDS Villa Lift Traction Motor
Features
- Â Capacity: 450kg-1000kg
- Â Wrap: Single wrap
- Rotor: Internal rotor
- Undercut: U
- Foot Pad Flatness: < 0.5mm
- Protection Rating: IP41
- Insulation Class: F
- Poles: 20
- Â Duty Cycle: S5-40ï¼…
- Â Motor Rated Voltage: AC380V
- Brake: Plate
- Picking/Holding Voltage: DC110V

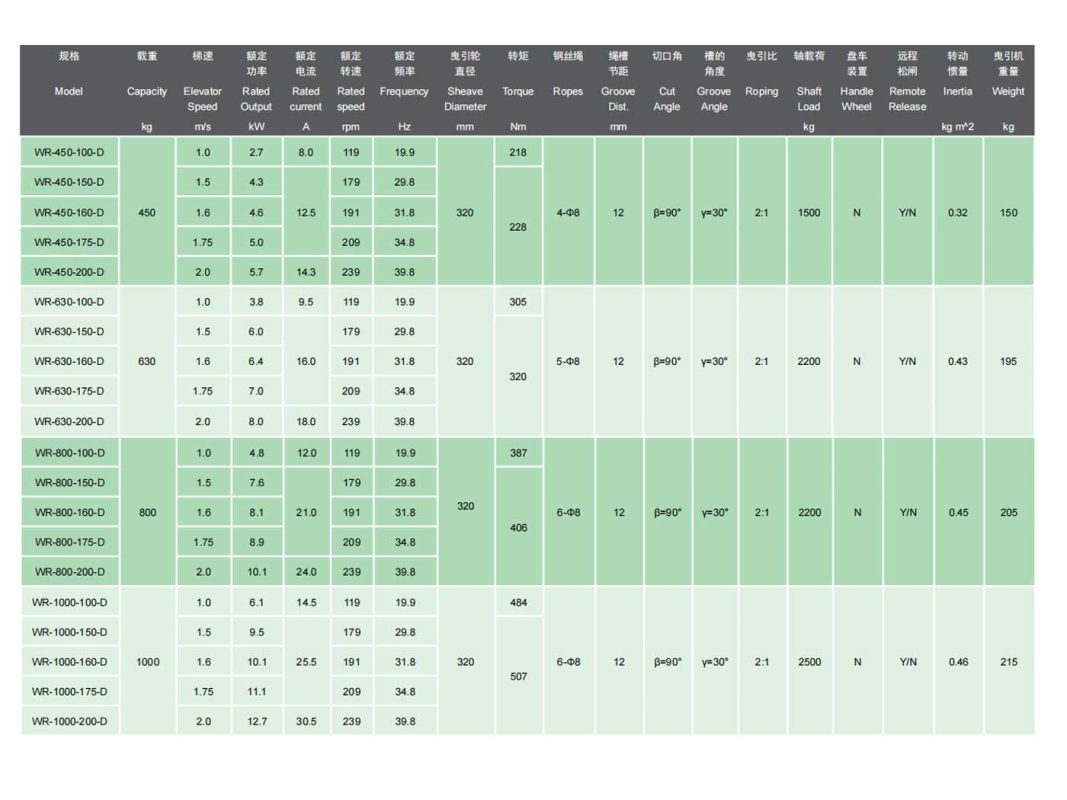

Technical Data:

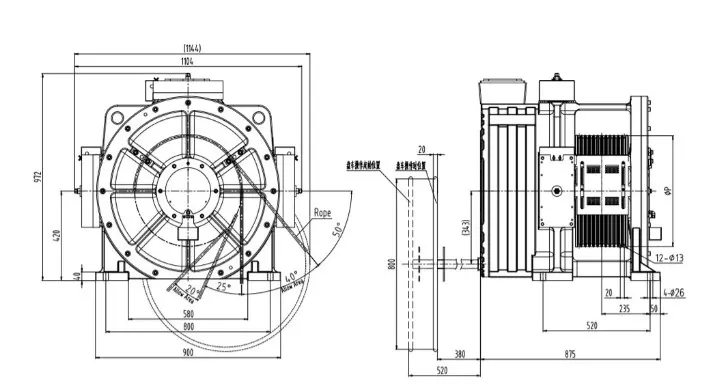

Diagram:
Nidec KDS Villa Lift Traction Motor – Compact Power for Safe Home Elevators
Home elevators should feel smooth, quiet, and safe. But many villa owners face problems like jerky movement, noise, and frequent maintenance. These issues reduce comfort and increase long-term cost.
The Nidec KDS Villa Lift Traction Motor is designed to solve these problems. It delivers stable performance, quiet operation, and energy efficiency for modern home and villa elevator systems.
Key Features of Nidec KDS Villa Lift Traction Motor
1. Compact Design for Home Elevators
2. Gearless or Low Gear Technology
3. Energy-Efficient Performance
4. Silent Operation
5. Stable Safety System
6. Durable Japanese Build Quality
Benefits of the Nidec KDS Villa Lift Traction Machine
I. Perfect for Home Comfort
II. Space-Saving Design
III. Low Running Cost
IV. Safe for Family Use
V. Low Maintenance Needs
Frequently Asked Questions
Q. What is a Villa Lift traction motor used for?
It is used to power home and residential elevators for smooth vertical movement.
Q. Is it suitable for small homes?
Yes. It is designed specifically for compact residential spaces.
Q. Is the motor noisy?
No. It operates very quietly, making it ideal for home use.
Q. Does it consume a lot of electricity?
No. It is highly energy efficient and reduces power usage.
Q. Is it safe for family use?
Yes. It includes a reliable braking and safety system for residential elevators.
The NIDEC KDS Villa Lift Traction Motor is a smart solution for modern home elevators. It delivers smooth performance, quiet operation, and strong safety features
