Lift WDG 100H-38-4096-ABN-105-K3-D56 Encoder

Lift WDG 100H-38-4096-ABN-105-K3-D56 Encoder: High-Precision Feedback for Reliable Elevator Performance

Is your elevator experiencing inaccurate floor leveling, unstable movement, or unexpected control system faults? In many cases, the problem originates from an encoder that is no longer delivering accurate feedback. A high-quality elevator encoder is essential for maintaining smooth travel, passenger safety, and precise positioning.

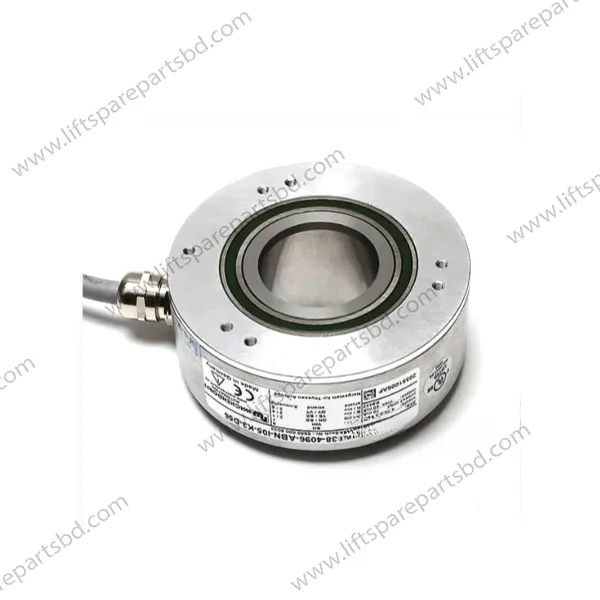

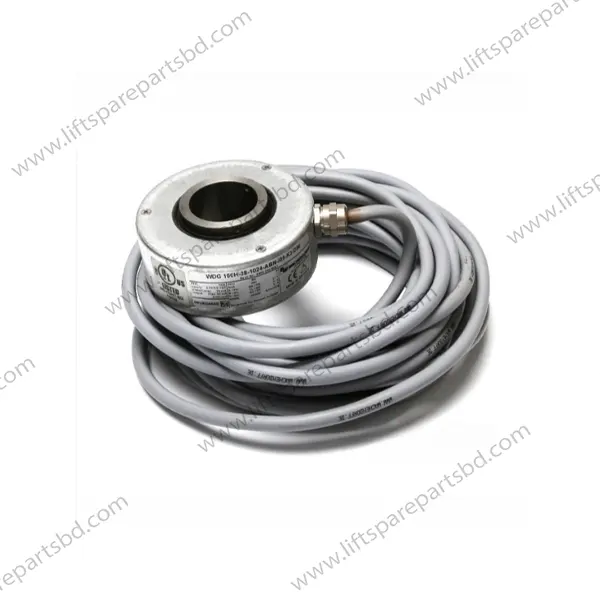

The Lift WDG 100H-38-4096-ABN-105-K3-D56 Encoder is a high-resolution rotary encoder designed for elevator motor control and position monitoring. With advanced 4096 pulse resolution, it provides accurate speed and position feedback to the elevator controller, ensuring smooth operation, reliable stopping accuracy, and improved system efficiency.

Whether used for elevator maintenance, modernization, or replacement projects, this encoder offers dependable performance in demanding lift applications.

Key Features of the Lift Encoder

I. High-Resolution 4096 PPR Feedback

Provides highly accurate position and speed monitoring for advanced elevator control systems.

II. Precise Floor Leveling

Helps elevators stop accurately at floor level, improving passenger comfort and accessibility.

III. Stable ABN Signal Output

Delivers reliable A, B, and N pulse signals for consistent communication with the controller.

IV. Smooth Elevator Travel

Supports precise acceleration, deceleration, and speed regulation for a comfortable ride.

V. Industrial-Grade Construction

Built to withstand continuous operation in elevator machine rooms and lift systems.

VI. Enhanced Motion Control

Improves synchronization between the elevator motor, drive system, and controller.

VII. Reliable Performance

Reduces signal errors and helps prevent unexpected elevator faults.

Benefits of Using WDG 100H-38-4096-ABN-105-K3-D56 Encoder

1. Superior Position Accuracy

The 4096 PPR resolution provides highly precise elevator positioning and floor alignment.

2. Improved Passenger Comfort

Smooth motor control minimizes vibration, sudden movements, and uneven stopping.

3. Increased System Reliability

Stable feedback signals help reduce controller errors and operational interruptions.

4. Better Elevator Safety

Accurate speed and position monitoring support critical safety functions.

5. Reduced Maintenance Costs

Reliable performance lowers the risk of recurring faults and emergency repairs.

6. Longer Equipment Life

Optimized motor control helps reduce wear on mechanical and electrical components.

Application

The WDG 100H-38-4096-ABN-105-K3-D56 Encoder is widely used across various elevator systems and modernization projects.

• Residential Elevators
• Commercial Buildings
• Hospitals
• Hotels
• Shopping Malls
• High-Rise Buildings
• Elevator Maintenance Projects
• Elevator Modernization Programs

Frequently Asked Questions (FAQ)

Q. What is the function of the WDG 100H-38-4096-ABN-105-K3-D56 Encoder?

This encoder monitors motor rotation and sends precise position and speed data to the elevator controller, ensuring smooth operation and accurate floor leveling.

Q. What does 4096 PPR mean?

4096 PPR stands for 4096 Pulses Per Revolution. It indicates a high-resolution encoder capable of providing extremely accurate position tracking and motion control.

Q. Why is encoder feedback important in elevators?

Encoder feedback allows the controller to monitor elevator speed, direction, and position. Accurate feedback improves safety, ride quality, and system efficiency.

Q. What are common signs of a faulty elevator encoder?

Typical symptoms include inaccurate floor stopping, jerky movement, speed fluctuations, controller errors, and unexpected shutdowns.

Q. Can this encoder be used in elevator modernization projects?

Yes. The WDG 100H-38-4096-ABN-105-K3-D56 Encoder is commonly used for elevator upgrades and modernization projects to improve performance and reliability.

Q. Does replacing a faulty encoder improve elevator performance?

Yes. A new encoder can significantly improve ride comfort, floor leveling accuracy, motor control, and overall elevator reliability.

Q. How long does an elevator encoder typically last?

Encoder lifespan depends on operating conditions, maintenance quality, and usage frequency. Regular inspection helps maximize service life.

The Lift WDG 100H-38-4096-ABN-105-K3-D56 Encoder is a critical component for achieving accurate elevator positioning, smooth travel, and dependable system performance. Its high-resolution 4096 PPR feedback technology helps improve motor control, reduce downtime, and enhance passenger safety. Whether you are replacing a faulty encoder, upgrading an elevator system, or performing routine maintenance, this encoder delivers the precision and reliability required for modern lift applications.

Choose the Lift WDG 100H-38-4096-ABN-105-K3-D56 Encoder to improve elevator accuracy, maximize system reliability, and ensure long-term operational performance.
