KDS MR Passenger Lift Traction Motor
Features
- Â Capacity: 320 kg-2500 kg
- Wrap: Single wrap
- Rotor: External rotor
- Undercut: U
- Foot Pad Flatness: < 0.5mm
- Â Protection Rating: IP40
- Insulation Class: F
- Poles: 20 | 30 | 32
- Duty Cycle: S5-40ï¼…
- Motor Rated Voltage: AC380V
- Brake: Block
- Picking/Holding Voltage: DC110V

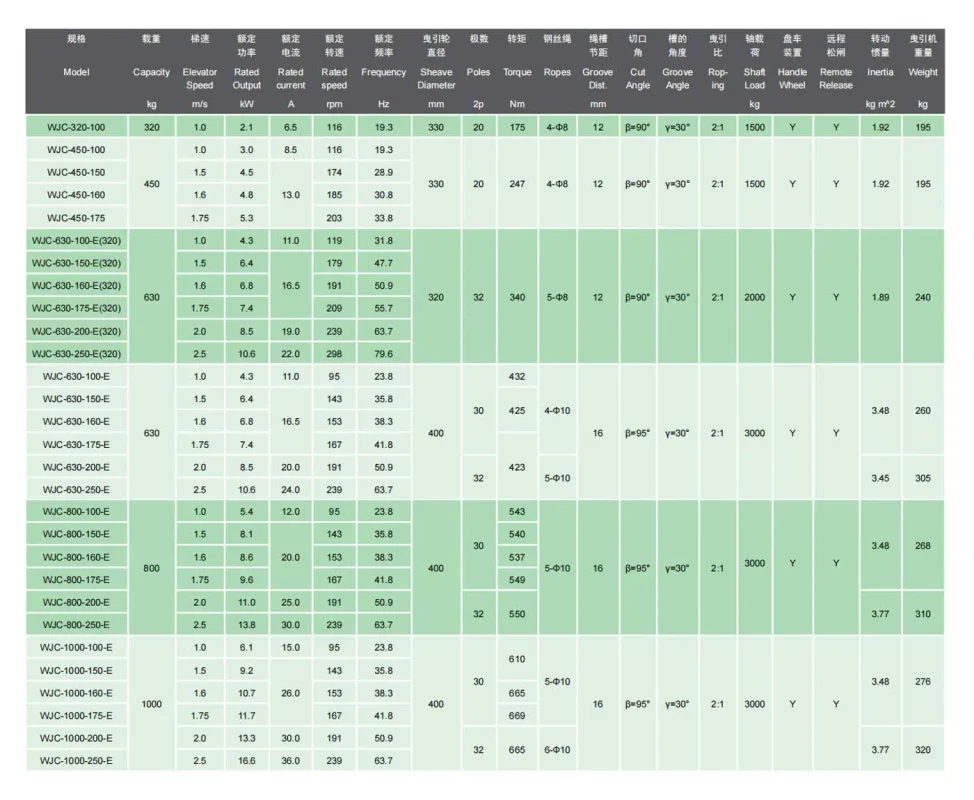

Technical Data:

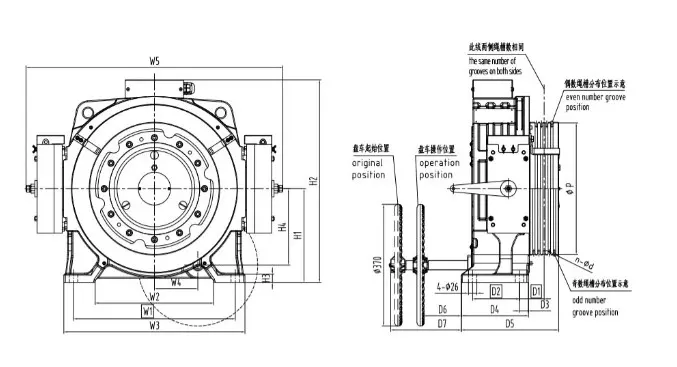

Diagram:
KDS MR Passenger Lift Traction Motor – Strong Performance for Reliable Elevator Operation
Slow elevator speed, noisy rides, and frequent breakdowns create daily frustration for building users. These issues often come from weak or outdated traction systems. They also increase maintenance costs over time.
A strong and stable solution is the KDS MR Passenger Lift Traction Motor. It delivers smooth travel, high load capacity, and long-term reliability for modern elevator systems.
Key Features of KDS MR Passenger Lift Traction Motor
1. High Torque Output
2. Machine Room Design
3. Smooth Speed Control
4. Energy-Efficient Operation
5. Durable Japanese Engineering
6. Reliable Brake System
Benefits of KDS MR Passenger Lift Traction Motor
I. Strong Load Handling
II. Long-Term Reliability
III. Lower Maintenance Cost
IV. Energy-Saving Performance
V. Easy Maintenance Access
Frequently Asked Questions
Q. What is “MR” in KDS MR Passenger Lift Motor?
“MR” means Machine Room. The motor is installed in a separate machine room for easy maintenance.
Q. Is this motor suitable for high-rise buildings?
Yes. It is designed for medium to high-rise passenger lift systems.
Q. Does it save energy?
Yes. It uses optimized motor technology to reduce electricity consumption.
Q. How often does it need maintenance?
It requires low maintenance due to its strong and durable design.
Q. Is it safe for passenger elevators?
Yes. It includes a reliable braking system for safe and controlled operation.
The KDS MR Passenger Lift Traction Motor is a dependable solution for modern elevator systems. It offers smooth operation, strong load handling, and long service life.
