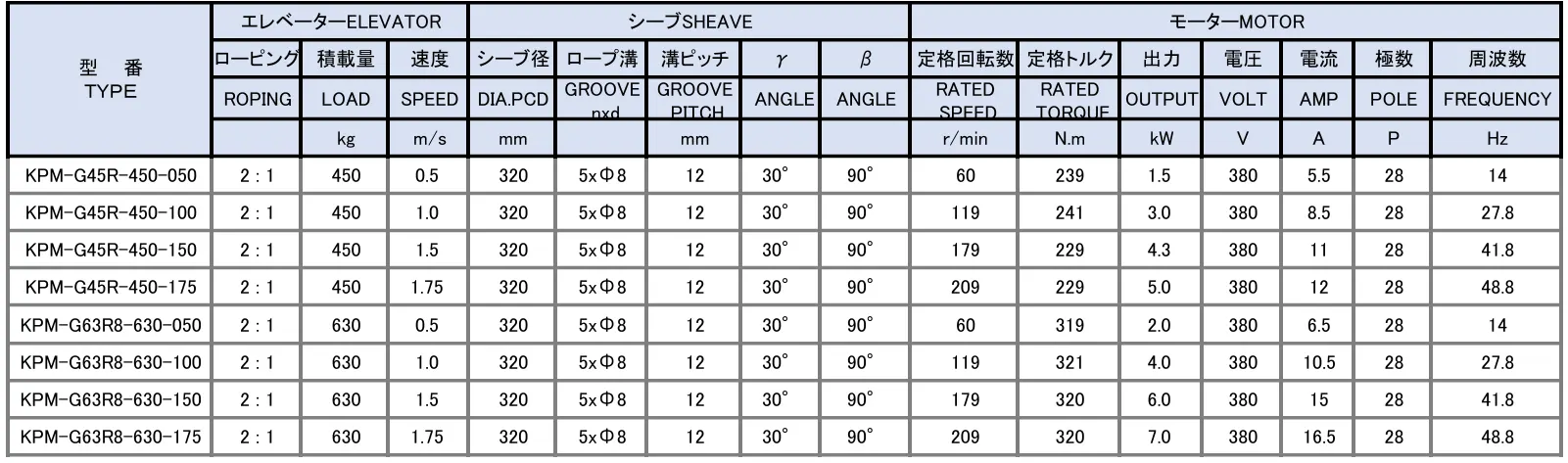

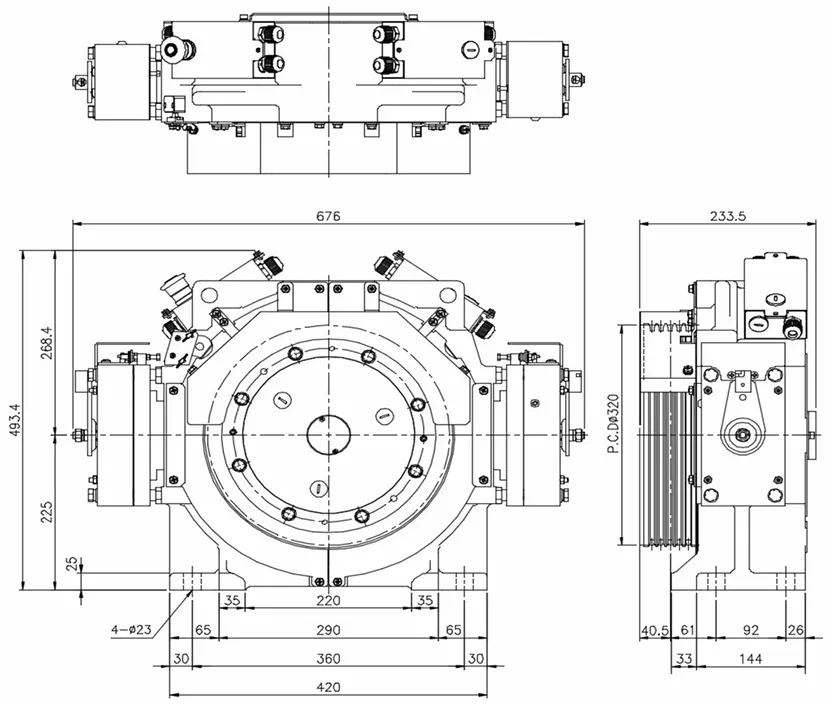

KANEKO JAPAN PMSM Elevator Traction Machine

Features:

Rope: 2:1
Speed(m/s): 0.5-1.75
Load (KG): 450-630
Motor Weight (KG): 320
Sheave PCD DIA(mm): 400
Duty Cycle: S5-60%
Brake Type: SDZK-8500JR
Brake Torque (N.m): 2*850
Encoder: HEIDENHAIN ERN1387

KANEKO JAPAN PMSM Elevator Traction Machine: High-Efficiency Motor for Modern Elevators

Elevator systems today face a clear challenge. They must run more smoothly, consume less power, and require less maintenance.

Older traction systems often fail in these areas. They create noise, waste energy, and need frequent servicing.

The KANEKO JAPAN PMSM Elevator Traction Machine is built to solve these issues. It uses advanced motor technology for stable, efficient, and quiet elevator performance. This is a smart choice for modern residential and commercial buildings.

Key Features

The PMSM traction machine delivers strong performance with modern engineering.

Permanent Magnet Synchronous Motor (PMSM) Technology
Provides high torque and stable operation at low speed.
High Energy Efficiency Design
Reduces power consumption and operating cost.
Smooth & Silent Operation
Improves passenger comfort in all building types.
Compact Structure
Suitable for machine room-less (MRL) elevator systems.
Strong Load Handling Capacity
Supports a wide range of passenger elevator sizes.
Low Maintenance Requirement
Fewer mechanical parts reduce service frequency.
Precise Speed Control
Ensures safe and accurate floor leveling.
Long Service Life
Built for continuous industrial-grade operation.

Frequently Asked Questions (FAQ)

Q: What is a PMSM elevator traction machine?

It is a motor system using permanent magnet synchronous technology for smooth and energy-efficient elevator movement.

Q: Is it suitable for MRL elevators?

Yes. It is designed for machine room-less elevator systems.

Q: Does it save energy?

Yes. PMSM technology reduces electricity usage significantly.

Q: Is maintenance required often?

No. It requires minimal maintenance due to fewer moving parts.

Q: Where is it commonly used?

It is used in residential, commercial, and high-rise buildings.

The KANEKO JAPAN PMSM Elevator Traction Machine is a reliable choice for modern elevator systems. It delivers smooth rides, strong efficiency, and long-term durability.

If you want better performance with lower running costs, this is a practical solution.
